Even if you use the perfect fertilizer and sow right on time, your paddock might still underperform. Often, the hidden culprit is soil compaction.
Compaction squeezes air and water out of the soil, preventing roots from reaching deep moisture. Because it builds up slowly, usually from running machinery or grazing livestock during wet weather, it is easy to miss. Most farmers don’t notice the issue until their crop yields drop or water starts pooling on the surface after a heavy rain.
This guide covers what causes compaction, how to check your own ground with a shovel and a bit of steel, what it is costing you and what your options are for pulling it apart again.
What is soil compaction?
Soil compaction is when pressure from machinery, stock or tillage presses soil particles together and reduces the pore space that holds air and water. The soil becomes dense and hard, roots struggle to push through it and water infiltrates slowly. Compacted layers usually sit between 10 and 40 centimetres deep.
It is not a fringe problem either. An estimated 13 million hectares, or about 70% of Western Australia’s agricultural soils, are moderately to highly susceptible to subsurface compaction, and the compacted layer typically forms between 10 and 40 centimetres down. Similar hardpans turn up in cropping country and pasture right across the eastern states.
What causes compaction in paddocks and pasture
Three things do most of the damage. All three come back to load and moisture.
Machinery traffic and wheel tracks
Machinery has gotten heavier every decade while tyre footprints have not kept pace. Every loaded chaser bin, spreader and harvester pass presses the soil down, and the deeper compaction from axle load does not fix itself with a bit of tillage.
Random traffic is the real killer. Where growers have not set up matched wheel tracks, a surprising share of the paddock gets driven on every season. Australian research over 20 years suggests the whole-farm yield benefit from moving to controlled traffic farming generally sits between 2 and 16%.
Watch for:
- Loaded gear running on soft ground after rain
- Silage and hay carting through winter and early spring
- Feed-out runs on the same line week after week
- Contractors turning at the same headland every year
Stock treading and camp areas
Compaction under stock is shallower than machinery compaction but it hits pasture hard. Hooves concentrate a lot of weight into a small area, and on wet soil that pugs the surface and closes up the top 50 to 100 millimetres.
Check the spots stock keep coming back to. Gateways, laneway ends, water points, feed rings and shady camp trees are usually the worst ground on the property. They are also small enough to treat first if you want a low-cost trial before doing whole paddocks.

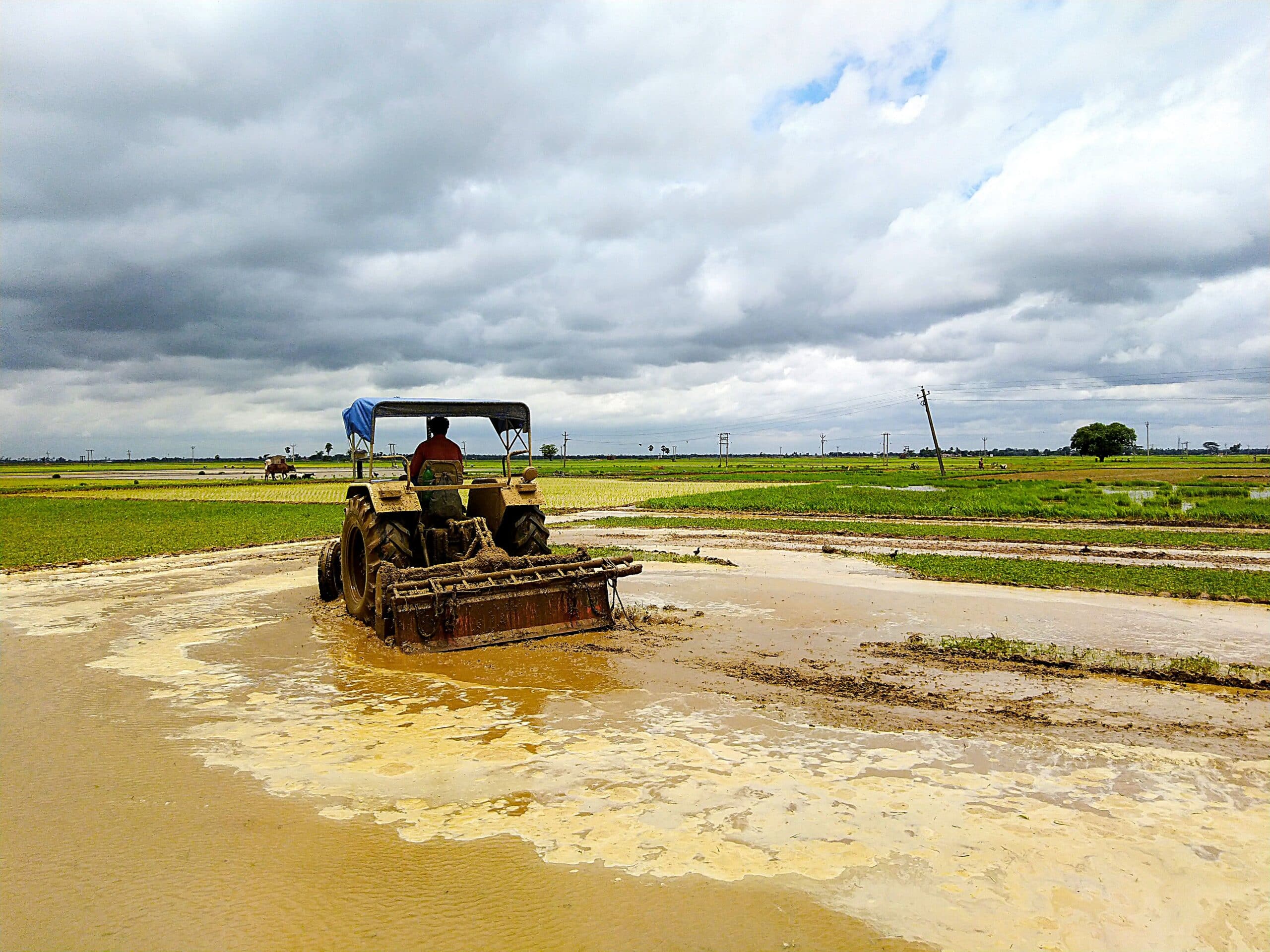

Working ground when it is too wet
Wet soil has almost no strength. The same pass that does nothing on dry ground can smear a layer at working depth when the moisture is up, and that smeared layer is what roots hit later in the season.
If you can roll a ribbon of soil between your fingers without it crumbling, it is too wet to be carrying weight across. Waiting three days is cheaper than ripping the paddock in three years.
How to tell if your ground is compacted
You do not need a lab to work this out. Run these five checks:
- Dig a hole. Take a spade down 300 millimetres in a good part of the paddock and again in a wheel track, then compare the two faces.
- Push a rod or penetrometer in. Note the depth where it suddenly gets hard, and how thick that layer is.
- Look at where the water goes. Time how long a puddle takes to drain after rain or after tipping a bucket out.
- Pull a plant up. Follow the roots down and see whether they run straight or turn sideways.
- Compare against the fence line. Ground under a fence or in a corner that never gets driven on is your control.
The shovel and penetrometer test
The shovel tells you the most. Cut a clean face and look at how the soil breaks. Good structure falls apart into crumbs and blocks with visible pores and old root channels. A compacted layer comes out in a dense slab, feels sharply harder than the soil above and below it and often has a platy look where the particles are pressed flat.
A cone penetrometer puts a number on it. As a guide, crop root growth starts to be restricted once penetration resistance goes past about 1.5 MPa and is severely restricted at 2.5 MPa or more. Take readings when the profile is moist rather than bone dry, or you will read soil strength from dryness instead of compaction. A sharpened steel push rod does the same job by feel if you do not own a penetrometer.
Take at least ten readings across the paddock and mark them on a map. One reading tells you nothing.
Water pooling and slow infiltration
Compacted soil cannot take water in fast enough. The signs are easy to read from the ute:
- Water sitting in wheel tracks and headlands long after the rest has gone
- Run-off starting during moderate rain rather than heavy rain
- Wet strips that stay boggy while the paddock beside them dries
- Crop or pasture that hays off early because stored moisture down deep never got recharged
That last one is the expensive version. If rain runs off instead of soaking in, you are farming on a smaller water bank than your rainfall suggests.
Shallow or sideways root growth
Roots are honest. Pull a few plants and look at the shape of the root system rather than the top growth.
Compaction shows up as roots that run down normally, hit a layer and then flatten out sideways along the top of it. You will also see thickened or clubbed root tips where the plant pushed against something it could not get through, and roots squeezing through old cracks and worm channels instead of spreading through the soil.
Shallow roots mean less access to subsoil moisture and nutrients, which is why compacted paddocks fall over first in a dry finish. If you want the background on why structure matters this much, our guide to improving soil structure is worth a read.
What compaction costs you in yield and water
The cost is quiet, which is what makes it easy to ignore. It does not show up as a failed crop. It shows up as a paddock that never quite hits its potential.
Some numbers worth knowing:
- Economists estimate compacted soils cost Western Australian grain growers up to $54 per hectare a year in lost yield potential.
- More than 20 million hectares of Australia’s grain cropping area is susceptible to high soil strength.
- Victorian work on tractor compaction recorded yield losses of 15 to 30% where soil had been degraded by wheelings, on both clays and sandy loams.
Run those percentages across your own yield and price and it adds up quickly. The water side matters just as much in most of this country. Rain that runs off a sealed surface is rain you paid nothing for and got nothing from, and compacted ground gives you less usable rooting depth to store what does get in.
How to fix compacted ground
There is no single fix. What you choose depends on how deep the layer sits, what you are growing and how much you can spend per hectare.
Deep ripping vs aeration: what each one does
Deep ripping goes after subsoil compaction. Tynes run below the hardpan, usually somewhere between 300 and 600 millimetres depending on where the layer sits, and shatter it. It is a heavy, high-horsepower job best done when the soil is dry enough to crack rather than smear, and the benefit can last several seasons if you do not drive it back in straight away. Ripping is deep ripping and ground preparation work in the true sense, and it disturbs the profile.
Aeration is a lighter touch. Blades or tynes slice the top layer to open channels for air and water without inverting the soil or wrecking pasture cover. You can do it on established pasture and keep grazing. It targets shallower compaction rather than a deep hardpan.
The simple version:
- Hardpan at 300 millimetres and deeper, cropping ground, dry soil: deep ripping
- Compaction in the top 100 to 200 millimetres, pasture you want to keep: aeration
- Both present: fix the deep layer first, then manage the surface
When aeration is the right tool
Aeration earns its keep on grazing country and on paddocks where you cannot afford to take the pasture out of production. It suits:
- Pasture with surface sealing, pugging or a shallow compacted layer
- Country where you want rain to soak in rather than run off a slope
- Paddocks that need water and air moving without the cost and disturbance of a full ripping job
- Regular maintenance between bigger amelioration jobs
It is not a substitute for ripping a deep hardpan and it will not fix chemical constraints like sodicity or low pH. Where it does fit, heavy duty soil aerators let you work paddock by paddock and keep stock on the ground while you go.
Cover crops and biological approaches
Mechanical work opens the soil. Roots and biology are what keep it open.
- Deep-rooted species such as tillage radish, chicory and lucerne push through moderately compacted layers and leave channels behind them
- Keeping cover on the surface protects structure from raindrop impact and stock damage
- Organic matter feeds worms and fungi, and worm channels are free drainage
- Resting camp areas and rotating feed-out points spreads the load instead of concentrating it
Biology is slower than steel. It is also the only part that stops you doing the same job again in five years.
When to aerate in Australia
Timing does more for the result than horsepower does. Go too wet and you smear the slot. Go too dry and you either cannot get in or you tear the pasture up for nothing.
Spring and autumn windows by region
- Southern Australia (Victoria, Tasmania, southern SA and south west WA): autumn once opening rains have softened the profile, and again in spring before the soil dries out and sets hard.
- Northern NSW and Queensland: late summer through autumn after storm rain, when the profile has moisture at depth but the surface has drained. Winter is often too dry to get useful shattering.
- WA sandplain and low rainfall zones: the dry autumn window before seeding is the usual choice for ripping, with aeration timed to follow rain events.
- Irrigated country: work between irrigations rather than straight after, and give the ground time to drain.
Treat these as guides, not gospel. Your soil type and season will move the window either way.
Reading soil moisture before you go
The ribbon test is still the fastest check in the paddock. Take a handful from working depth and squeeze it:
- Crumbles apart and will not hold shape: too dry for aeration, though it may suit ripping
- Holds shape and breaks cleanly when bent: about right
- Rolls into a shiny ribbon and sticks to your hands: too wet, stay off it
Dig a hole and check at depth as well as at the surface. The top 50 millimetres dries first and will tell you the wrong story.
Matching an aerator to your tractor
Before you shortlist anything, get your own numbers straight. The things that decide fit are:
- Working width against tractor horsepower. Wider units need more power, and the requirement climbs as working depth and soil strength go up.
- Implement weight and lift capacity. Your three point linkage has to lift it safely at full extension, and heavier gear needs adequate ballast up front for steering and traction.
- Linkage category. Check the category on your tractor matches the implement hitch, or plan for a conversion.
- Hydraulic and PTO requirements. Confirm the number of remotes and the flow available if the machine needs them.
- Depth and soil type. Heavy clays need more pull than sands at the same width.
- Terrain. Slopes and rough country change what your tractor can safely handle.
If you are working through those numbers, the EZ soil aerator spec and tractor requirements are set out on the product page so you can match the machine to what you are already running. If your setup is unusual, our team builds to suit rather than making you buy around the gap.
Frequently asked questions
What is soil compaction?
Soil compaction is the compression of soil particles that reduces pore space, so the soil holds less air and water and roots cannot push through easily. It is usually caused by machinery traffic, stock treading or working ground when it is wet.
How do I know if my soil is compacted?
Dig a hole 300 millimetres deep and compare a trafficked area with an untouched fence line. Compacted soil comes out in dense slabs, resists a push rod or penetrometer, holds water on the surface and forces roots to grow sideways.
How deep is a compacted layer usually?
Machinery compaction usually forms a hardpan between 10 and 40 centimetres deep. Stock treading tends to compact only the top 50 to 100 millimetres.
At what penetrometer reading do roots stop growing?
Root growth generally starts to be restricted above about 1.5 MPa and is severely restricted at 2.5 MPa or more. Take readings when the soil is moist, not dry.
Does soil compaction fix itself?
Surface compaction can improve over time through wetting and drying cycles, frost and root growth. Deep subsoil compaction rarely recovers on its own and usually needs mechanical work.
What is the difference between deep ripping and aeration?
Deep ripping shatters a subsoil hardpan below about 300 millimetres and takes serious horsepower. Aeration slices the shallower layer to let air and water in without inverting the soil, so pasture stays intact and stock can stay on.
Can I aerate a paddock with stock on it?
Yes. Aeration leaves pasture cover intact, so most operators keep grazing. Avoid working the ground when it is wet enough to pug.
How often should compaction be treated?
It depends on soil type and traffic. Deep ripping benefits can last several seasons where traffic is controlled. Surface aeration on grazed pasture is often done annually or as needed.
Get on the front foot
Compaction is one of the cheapest problems to diagnose and one of the most expensive to leave alone. Grab a shovel this week, dig three holes in your worst paddock and see what the profile tells you.
If the answer is a shallow compacted layer that needs opening up, view the EZ Aerator range or give the team a call on 1300 736 982. We design and build every machine in our Brisbane workshop, and if your setup needs something different we will build it to suit.
